Product Details
Venturi Jet Pump Kit by Radium®. The Radium Engineering Jet Pump is an effective device for drawing fuel from one side of a fuel tank to the other. Fuel flowing through the venturi creates vacuum in the perpendicular port. The effectiveness of this vacuum is demonstrated in the video above. OEM jet pumps are commonly found in vehicles with saddle-style fuel tanks (RWD or AWD drivetrains) and are designed for factory fuel pump flow rates. When a higher flowing pump is installed, the factory jet pumps becomes a major restriction in the return line causing high fuel pressure. In some cases drilling out the OEM jet pump can relieve the pressure, but the function of the jet pump is then compromised. The Radium Engineering Jet Pump is designed for high flow aftermarket pumps and includes different venturi orifices to match a wide range of pump flow rates. The Radium Venturi Jet Pump uses a machined aluminum housing that is anodized and laser engraved. The kit includes 3 interchangeable orifices that were precisely calculated and vacuum pressure tested with multiple pump combinations. Consult the installation instructions (link above) for additional details on installation and use.
Notes
- When installing, do not forget to remove the OEM venturi jet pump! the system will not work properly if it’s trying to push through the restrictive oem venturi jet pump.
Features
- High quality at an affordable price
- Expertly made from premium materials
- Built to match your exact requirements
OEM jet pumps are commonly found in vehicles with saddle-style fuel tanks (RWD or AWD drivetrains) and are designed for factory fuel pump flow rates. When a higher flowing pump is installed, the factory jet pumps becomes a major restriction in the return line causing high fuel pressure. In some cases drilling out the OEM jet pump can relieve the pressure, but the function of the jet pump is then compromised. The Radium Engineering Jet Pump is designed for high flow aftermarket pumps and includes different venturi orifices to match a wide range of pump flow rates.

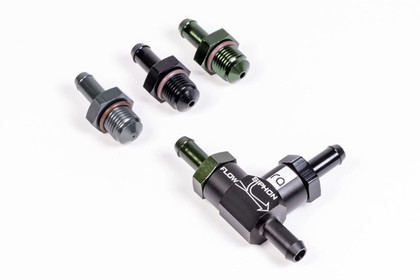

The Radium Venturi Jet Pump uses a machined aluminum housing that is anodized and laser engraved. The kit includes 3 interchangeable orifices that were precisely calculated and vacuum pressure tested with multiple pump combinations. Consult the installation instructions (link above) for additional details on installation and use. All 3 hose barbs connections are compatible with 5/16" or 3/8" ID hose. Also, the crossover siphon port can be easily adapted to common hoses as it uses 6AN ORB (9/16-18 O-ring) female threads.
Radium® is a trusted automotive manufacturer that offers an expanding collection of motorsport parts and accessories for high-performance and racing vehicles. All Radium products are carefully designed with thorough R&D and expertly built in-house using the latest computer simulation and modeling techniques to provide second-to-none quality. Extensively tested, the company’s products deliver the most impressive performance and exceed the most demanding expectations. For these reasons, top motorsport competitors from all over the world rely on Radium Engineering products.
Installation
![Radium® - Venturi Jet Pump Kit Installation](https://ic.carid.com/radium/items/video/20-0180_720p_9.jpg)
