| Make | Model | Year |
|---|---|---|
| Buick | Allure | 2010 |
| Lacrosse | 2010-2016 | |
| Regal | 2011-2017 | |
| Verano | 2012-2017 | |
| Chevy | Astra | 2006 |
| Captiva | 2012-2015 | |
| Captiva Sport | 2008-2011 | |
| Cobalt | 2006-2008 | |
| Equinox | 2010-2017 | |
| HHR | 2006-2011 | |
| Impala | 2014 | |
| Orlando | 2012-2014 | |
| GMC | Terrain | 2010-2017 |
| Pontiac | G5 | 2007-2008 |
| G6 | 2006-2010 | |
| Pursuit | 2006 | |
| Solstice | 2006-2009 | |
| Saturn | Aura | 2007-2009 |
| Ion | 2006-2007 | |
| Sky | 2007-2010 | |
| Vue | 2007-2010 |

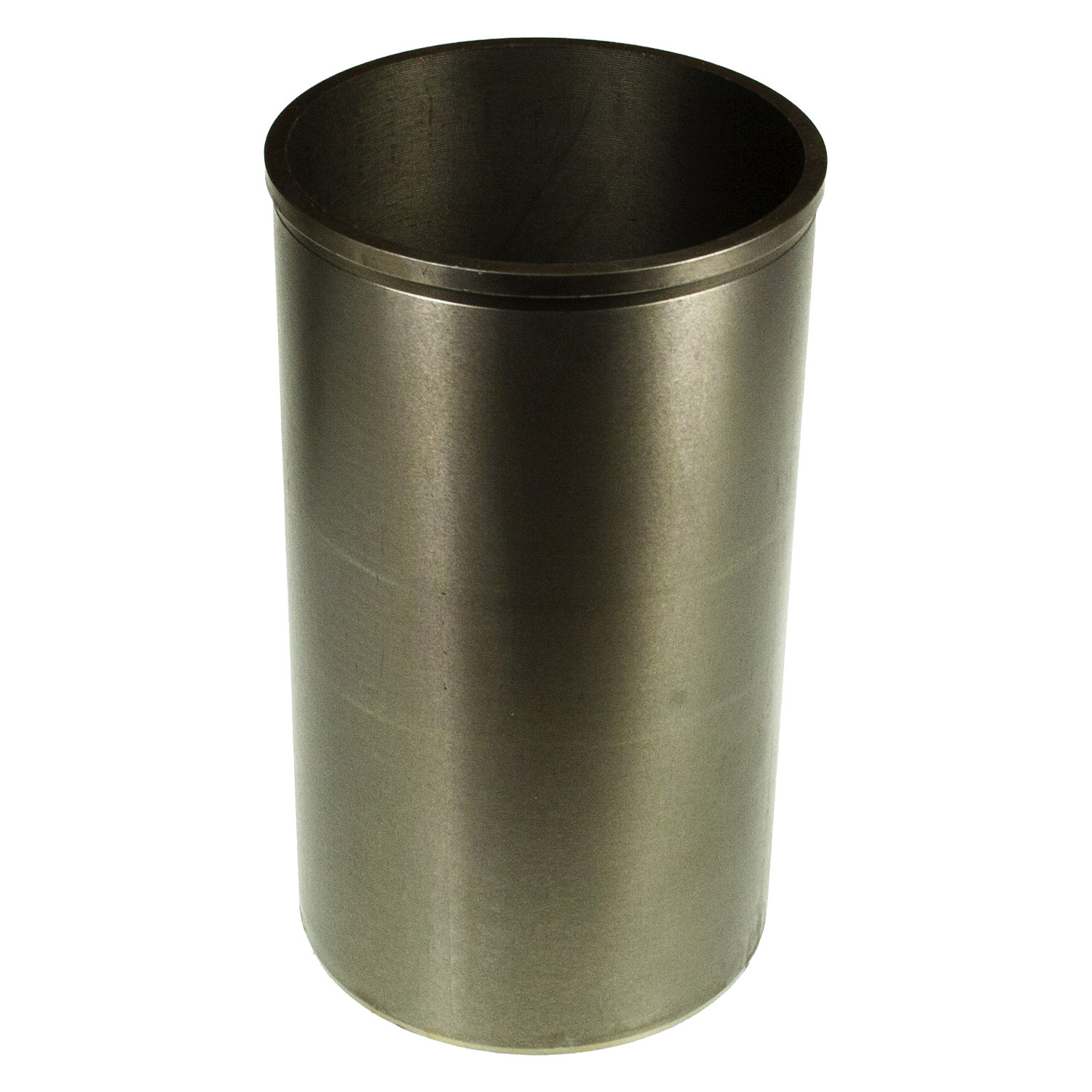

Cylinder Liner (CSL9349F) by Melling®. Melling replacement cylinder liners provide an efficient and economical way to replace the cylinder sleeves needed for a quality engine rebuild. Melling cylinder liners are manufactured using the highest design capabilities, quality materials and workmanship. Melling cylinder liners are manufactured in both stock replacement and high performance brands and are available in universal flanged, finished, heavy duty and custom sized.
| Flanged: Yes |
| Grade Type: Regular |
| Universal Or Specific Fit: Universal |
| Liner Outside Diameter: 90.93 mm |
| Liner Outside Diameter: 3.580" |
| Liner Inside Diameter: 3.435" |
| Liner Inside Diameter: 87.25 mm |
| Cylinder Bore Diameter: 3.465" |
| Cylinder Bore Diameter: 88.01 mm |
| Flange Outside Diameter: 3.759" |
| Flange Outside Diameter: 95.48 mm |
| Length: 141.86 mm |
| Length: 5.585" |
| Thickness: 0.063" |
| Thickness: 1.59 mm |
| Material: Cast Iron |
Melling® is a leading global manufacturer of fluid pumps, namely water, fuel, and oil pumps for transmission, gas, diesel, and hybrid applications as well as other powertrain parts. The company has eleven facilities in North America and Brazil and manufactures original equipment, aftermarket, and high performance products. Melling also provides contract manufacturing services. The company is famous for its excellent engineering and product development.
